- 12-Volt LTO Powersports Battery
- Group 20/20L
- Cranking Amps: 335
- Max Amps: 670
- Wattage: 750
- Amp Hours: 3
- Equivalent AGM Amp Hours: 10
- Rated up to 140°F
- Weight: 3.25 lbs.

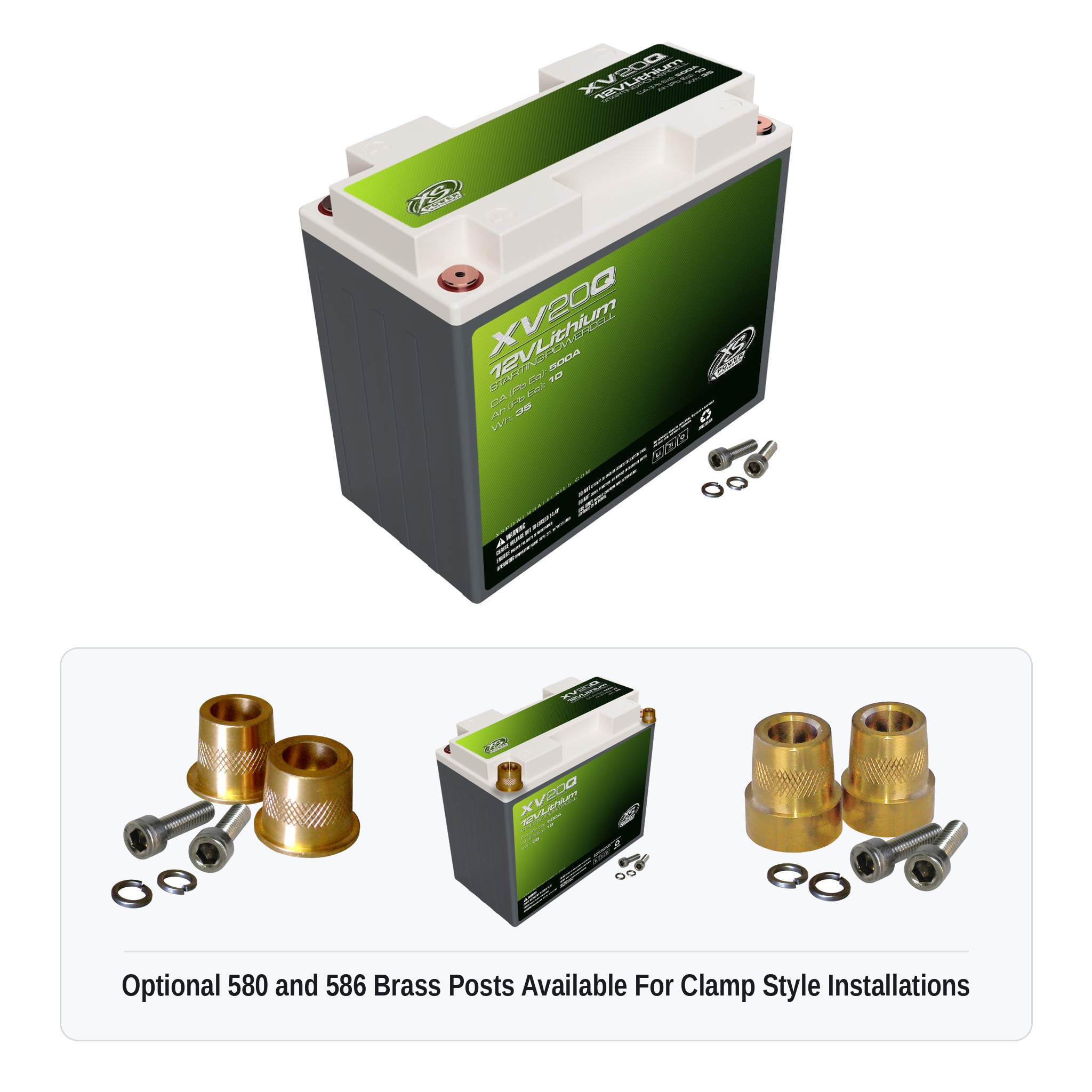

- M6 Terminal Hardware Included

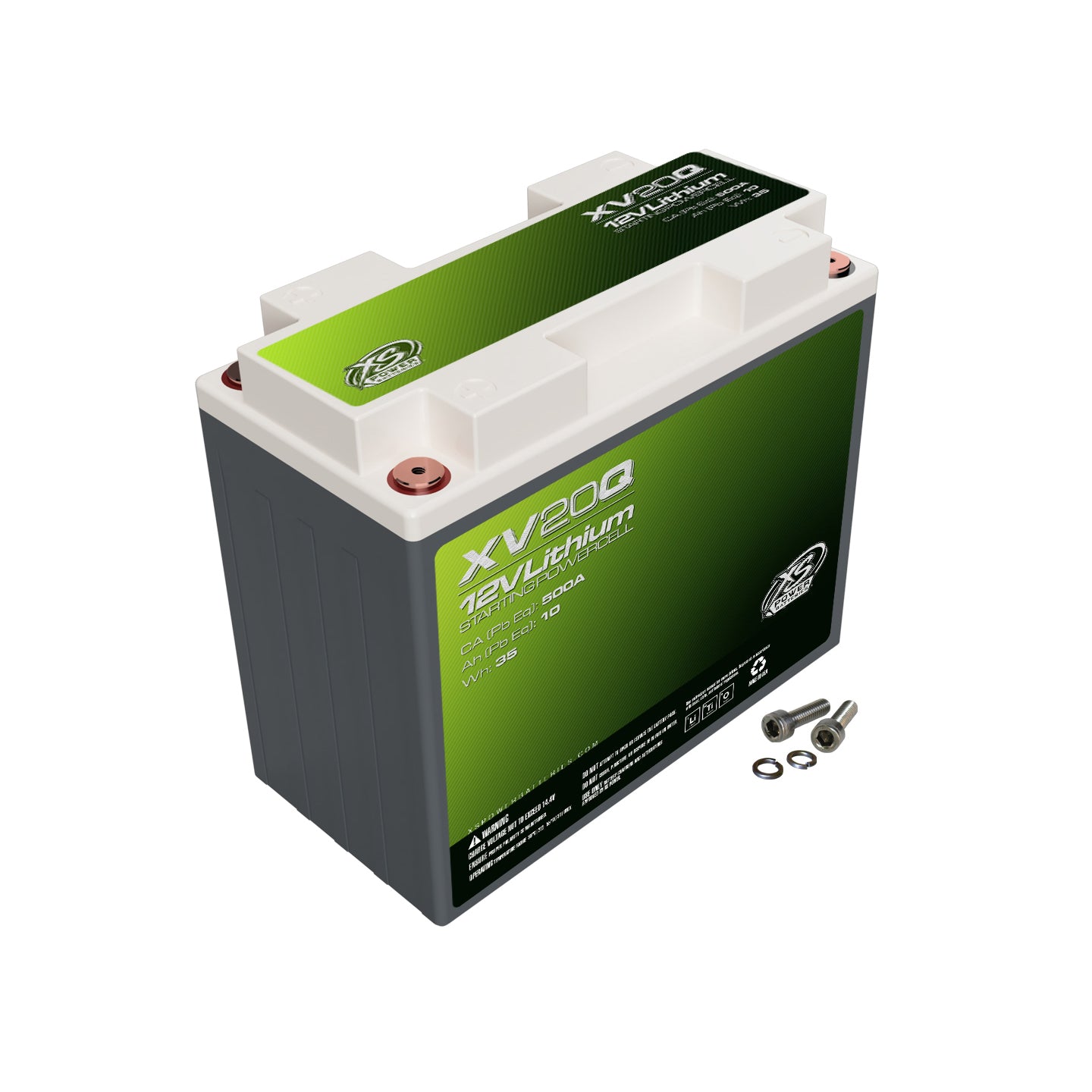

The XS Power XV20Q Lithium Titanate Oxide (LTO) battery lasts up to five times longer than a traditional AGM battery. Great for stock or aftermarket alternators/stators under 150 amps, mount the XV in a custom location or on the factory tray.
Use the XV as the main battery, or as a secondary power source. Supplying 750 watts of power, this ultra-lightweight battery easily delivers all the juice you need for your UTV, personal watercraft and more. Easily power aftermarket accessories like light bars, power inverters, winches, your audio system, and other electronics. Its sealed construction keeps it completely safe from shock, spills and moisture on even the roughest ride.
See specifications below.
DESCRIPTION
Weight Lbs. – 3.25lbs
Weight Kgs. – 1.47kgs
Length – 6.89 in
Height – 6.10 in
Width – 3.43 in
Voltage – 12V
Wattage – 750
MAX Amps – 670
Energy Wh – 35
CA – 335A
CA Pb Eq* – 500A
Ah – 3
Ah Pb Eq* – 10
IMPORTANT NOTES
- Usage strictly limited to alternators 150A or less!
- Not intended for high amp audio systems (1,500W Max)
- Prolonged exposure to temperatures above 140 Degrees will void the warranty and may cause permanent damage to the battery or vehicle.
*CA Pb Eq is the equivalent cranking amp output when compared to AGM
*Ah Pb Eq is the equivalent amp-hour when compared directly to AGM
PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling.
For more information, visit www.P65Warnings.ca.gov
| Specifications | |
|---|---|
BCI Group Size Industry Standard Sizing
|
|
Volts Voltage Capability Of Battery
|
|
Max Amps The max pulse current this battery can deliver
|
|
CA Cranking Amps - The amount of current this battery can discharge and sustain for 30 seconds at 70 degrees Fahrenheit
|
|
CA Pb Eq Equivalent cranking amps when tested as an AGM
|
|
Ah Amp Hours - How many amps this battery can deliver over a 1-hour period
|
|
Ah Pb Eq Equivalent amp-hour when tested as an AGM
|
|
Energy Wh This is another method of calculating capacity.
|
|
Wattage Support As a secondary battery, this is the amount of wattage this battery can support for your high performance accessories.
|
|
Polarity Orientation of Posts On Battery
|
|
Included Hardware Included Hardware - Posts or Terminals Included If Applicable
|
|
Warranty |
|
Instructions |
|
| Dimensions | |
Length (Inches) Length Of Battery In Inches
|
|
Width (Inches) Width of Battery In Inches
|
|
Height (Inches) Height of Battery In Inches
|
|
Weight (lbs) Weight of Battery in Pounds
|
|
Weight (kg) Weight of Battery in Kilograms
|
|
