XS Power 2001-2007 Chevrolet Silverado/GMC Sierra 2500HD/3500HD 6.6L Duramax LB7/LLY/LBZ Combo Kit - D3400 + SB500-34 + (2) 551
Choose options

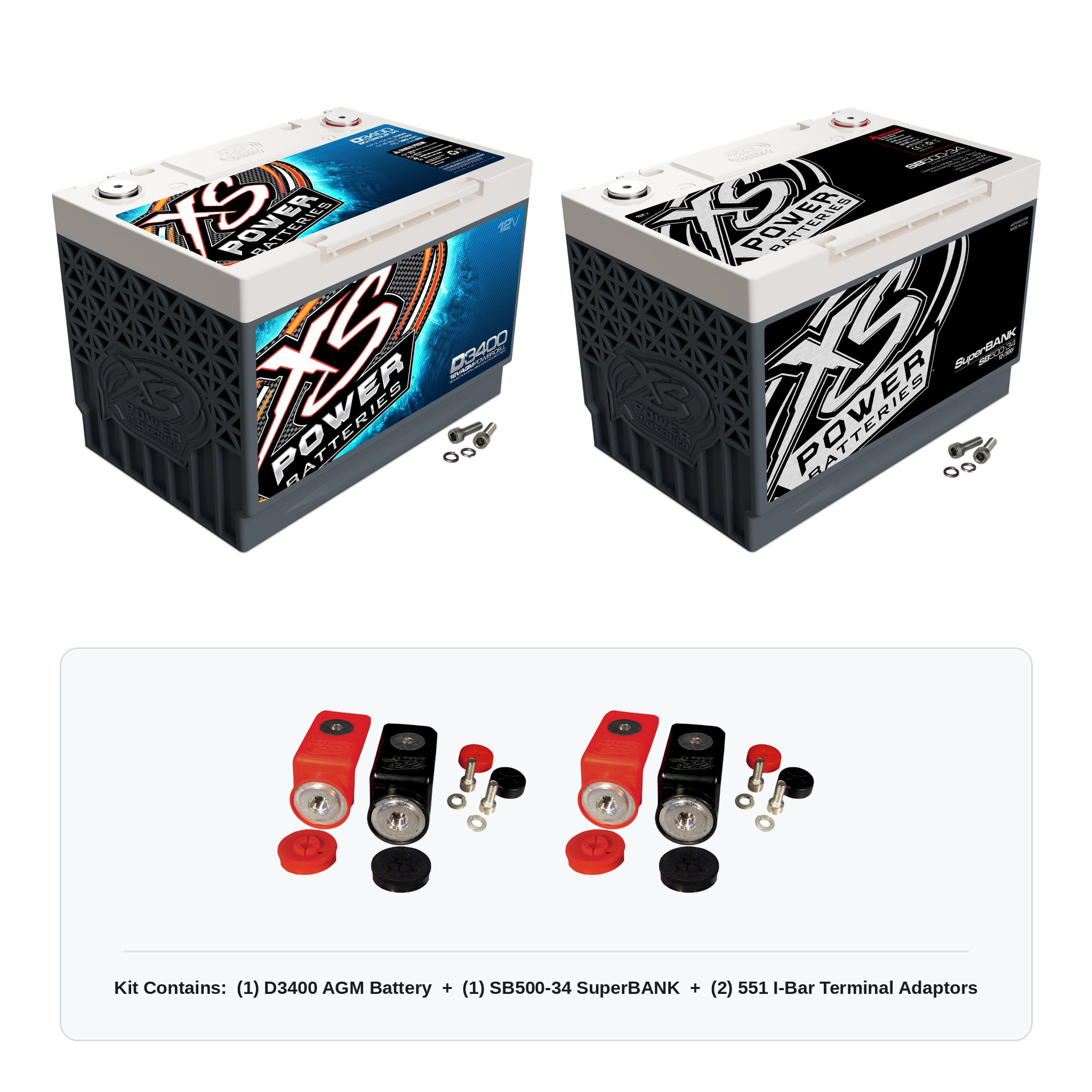

Kit Contains:
(1) D3400 Group 34 12V AGM Battery + (1) SB500-34 Group 34 SuperBANK Ultracapacitor + (2) 551 I-Bar Terminal Adaptor Sets
Fits: 2001–2007 Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD — 6.6L Duramax (LB7, LLY, LBZ)
This combo kit pairs the D3400 AGM starting battery with an SB500-34 SuperBANK ultracapacitor wired in parallel. LB7, LLY and LBZ Duramax trucks are sensitive to weak cranking voltage, and the SuperBANK addresses it directly: it dumps a burst of current the instant the starter engages, then recharges in seconds, keeping the glow plug controller, FICM and injection electronics on a stable supply. Two sets of 551 I-Bar adaptors are included to convert the M6 terminals on both units for the GM side-post cables these trucks use.

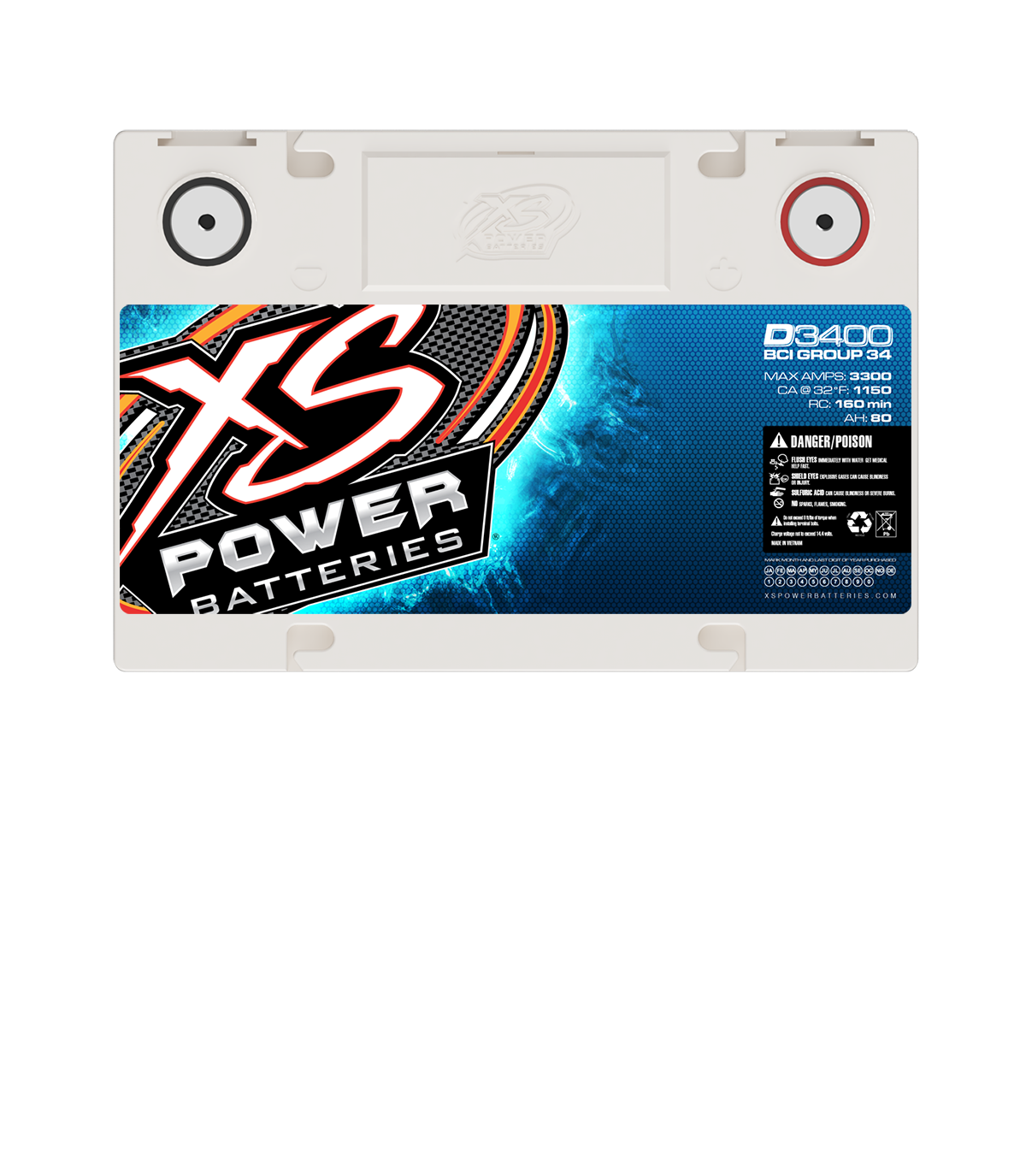

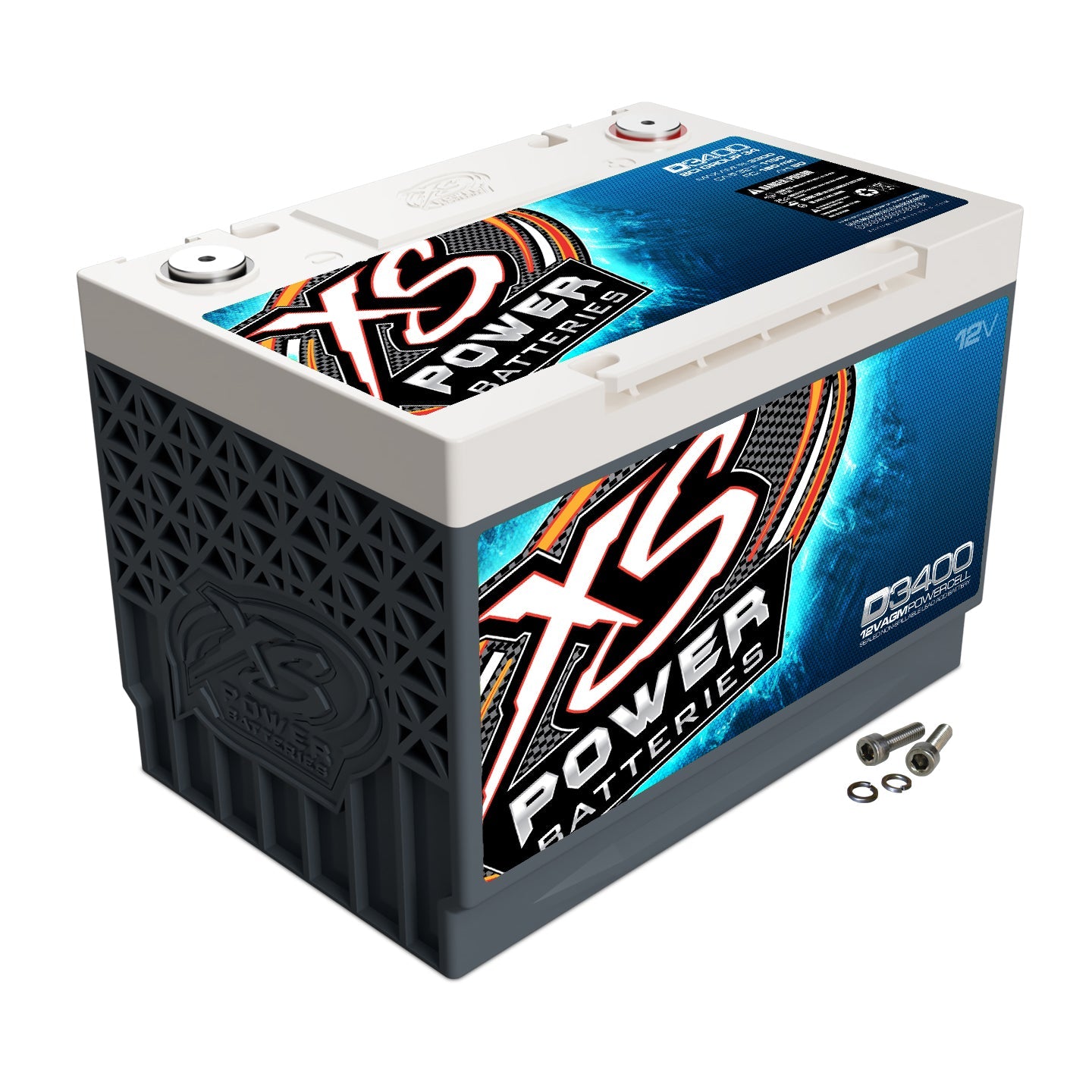

(1) XS POWER D3400 — GROUP 34 12V AGM BATTERY
- 12-Volt AGM Battery
- Group 34
- Max Amps: 3,300
- Cold Cranking Amps: 1,012
- Reserve Capacity: 160 minutes
- M6 Terminal Hardware Incl.
- 3 Year Warranty
- 49.97 lbs.
Extreme cranking power, enormous energy reserve and unparalleled durability make the XS Power D3400 the premier AGM battery for many Domestic, Japanese and European vehicles, including Jeep, Chrysler, Bentley, Nissan and more.
The D3400 is perfect for powering your car, and everything in it. Using Absorbent Glass Mat (AGM) technology, it easily delivers all the energy you need for aftermarket accessories like your audio system or other electronics. Its sealed construction keeps it completely safe from spills and moisture on even the roughest ride.
The battery’s low internal resistance allows it to deliver an impressive 1,150 cranking amps, so your engine starts in extreme hot or cold weather. Use the D3400 as your main battery to power your vehicle. With plenty of juice in reserve, it can run your car while it’s powering an audio system up to 2,500 watts. Using the D3400 as a secondary battery, you have a 4,000-watt capacity just waiting to be tapped.
12V BCI Group 34, AGM Battery
Weight Lbs. – 49.97
Weight Kgs. – 22.67
Length – 10.24 in
Height – 7.16 in
Width – 6.89 in
Max Amps – 3300A
CA – 1150
CCA – 1012
Ah – 80
RC – 160
Primary Watts – 2500 Watts
Secondary Watts – 4000 Watts
M6 Terminal Hardware Included
DOWNLOAD D-SERIES INSTRUCTIONS

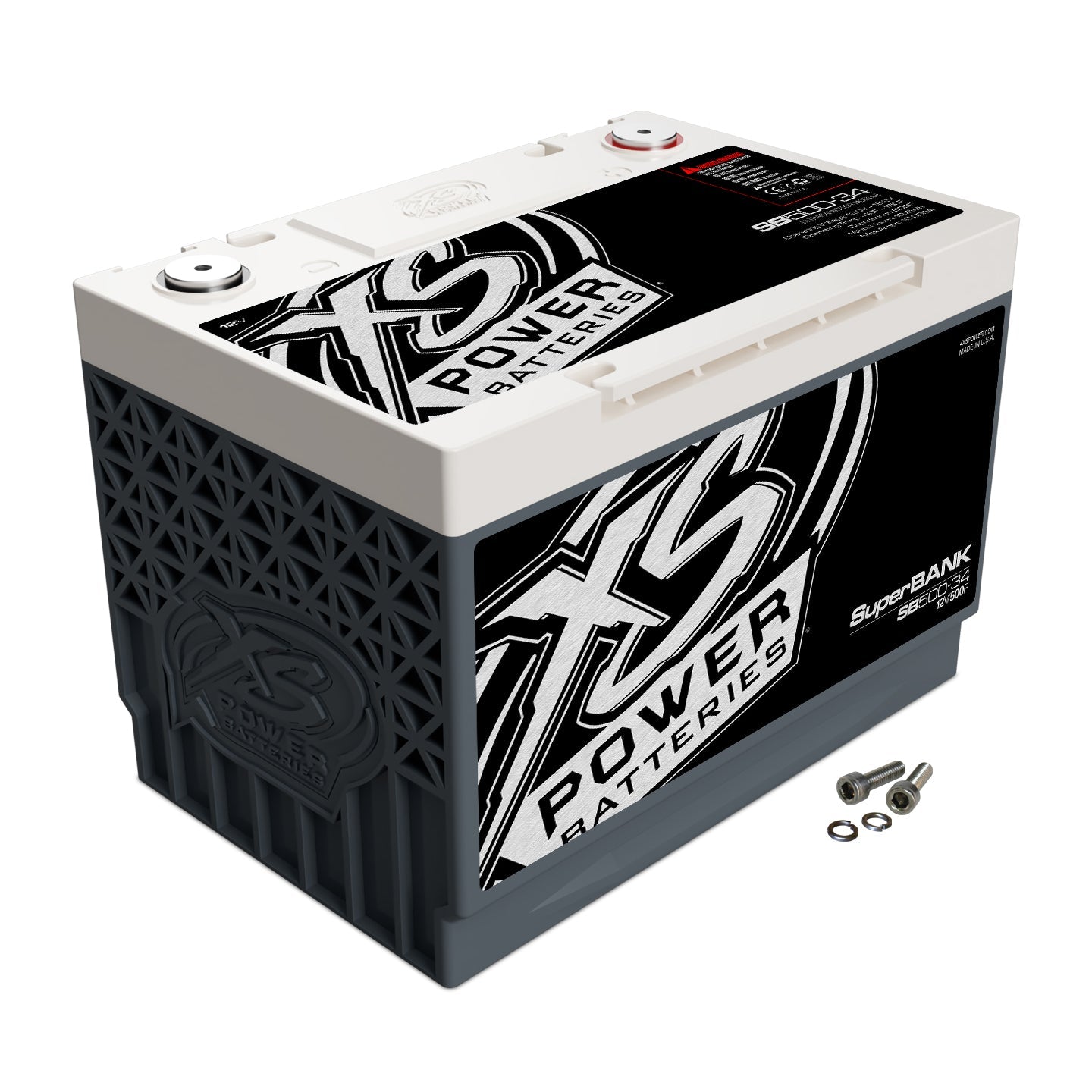

(1) XS POWER SB500-34 — GROUP 34 SUPERBANK ULTRACAPACITOR
- 12-Volt SuperBank Ultracapacitor
- Group 34
- Max Power: 4,000 Watts
- Voltage Range: 12.0 – 16.2
- 500 Farads
- 11 lbs.
- M6 Terminal Hardware Included
The XS Power SuperBANK is perfect for high-power car audio systems, engine starting systems, and more. Connect in parallel with any lithium or AGM battery to make a customized power pack, delivering the perfect amount of energy on demand so your amps, battery, or engine gets every bit of power they need—whenever they need it.
The SB500 delivers a surge of power to the factory 12-volt battery as it cranks, then rapidly recharges (usually in only a few seconds), ready to use again. The improved and stabilized voltage leads to longer-lasting factory batteries, starters, relays, and engine control modules, improving reliability and lowering the likelihood of costly repairs.
Ultracaps (aka Supercapacitors) also work extraordinarily well in extreme hot or cold. In winter, the Ultracap delivers a much-needed burst of energy to vehicles using a typically slow-cranking AGM battery. Rated to more than a million cycles, the Ultracap is designed to work well in commercial vehicles or “daily drivers”, normally lasting more than a decade.
12V BCI Group 34, Super Capacitor Bank, Max Power 4000 Watts, 500 Farad
Weight Lbs. – 11
Weight Kgs. – 4.98
Length – 10.24 in
Height – 7.2 in
Width – 6.75 in
Farads – 500
Max Power – 4000 Watts
Watt Hours – 18.2Wh
Operating Temperature – -40F-149F
M6 Terminal Hardware Included
DOWNLOAD SUPERBANK INSTRUCTIONS

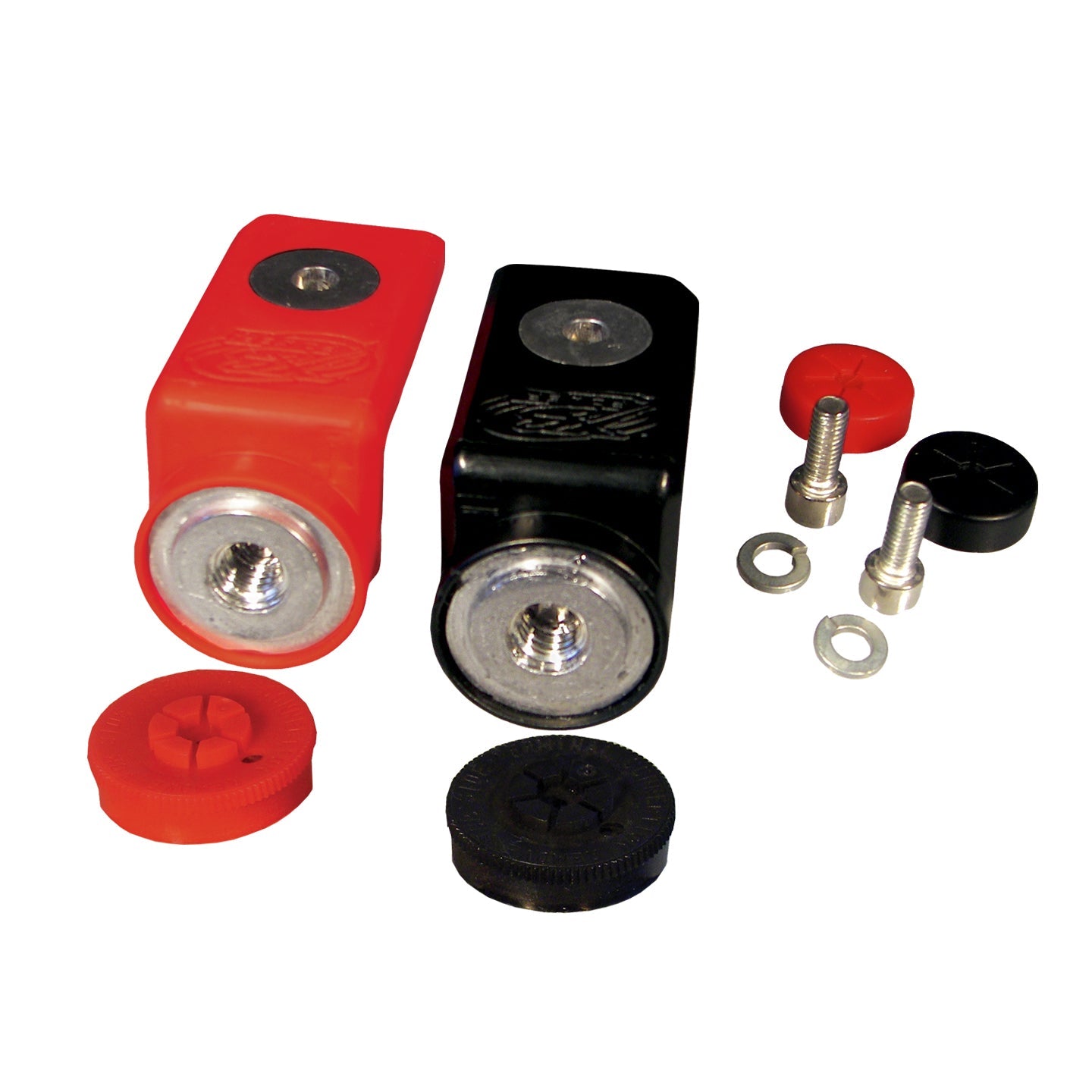

(2) XS POWER 551 — I-BAR SIDE AND TOP TERMINAL ADAPTORS
I-BAR side and top terminal adaptor — two sets included, one for the D3400 and one for the SB500-34. Converts the M6 terminals for side and top post cable ends.
