XS Power 1999-2003 Ford F-250/F-350/F-450 7.3L Powerstroke Combo Kit - D6500 + SB500-65 + (2) 580
Choose options

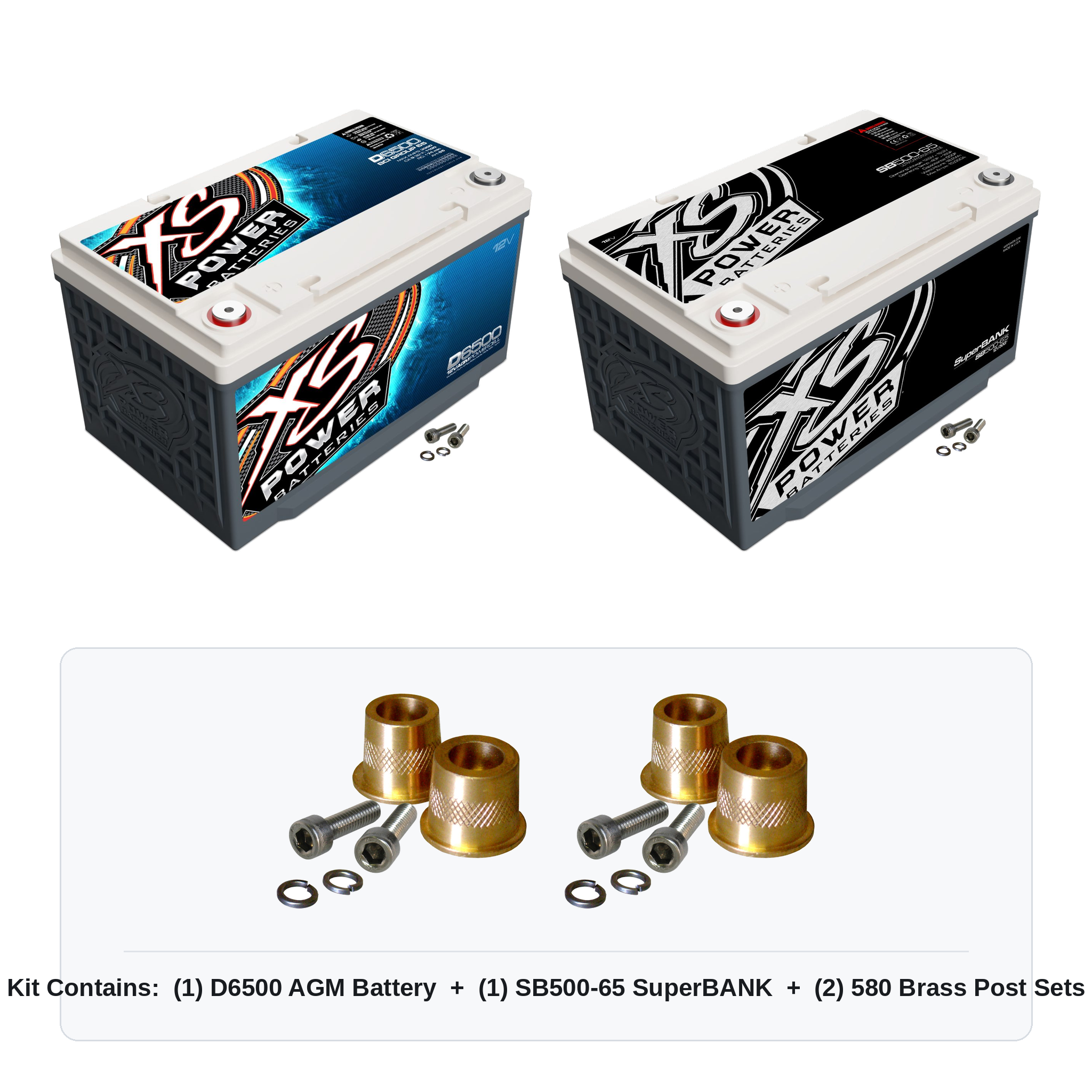

Kit Contains:
(1) D6500 Group 65 12V AGM Battery + (1) SB500-65 Group 65 SuperBANK Ultracapacitor + (2) 580 Short Brass Post Adaptor Sets
Fits: 1999–2003 Ford F-250, F-350 and F-450 — 7.3L Powerstroke
This combo kit pairs the D6500 AGM starting battery with an SB500-65 SuperBANK ultracapacitor wired in parallel. The SuperBANK dumps a burst of current the instant the starter engages, then recharges in seconds — so a cold 7.3L cranks harder and faster while the AGM battery, starter, glow plug relays and control modules all see a more stable voltage. Two sets of 580 short brass post adaptors are included to convert the M6 terminals on both units for clamp-style OEM cables.

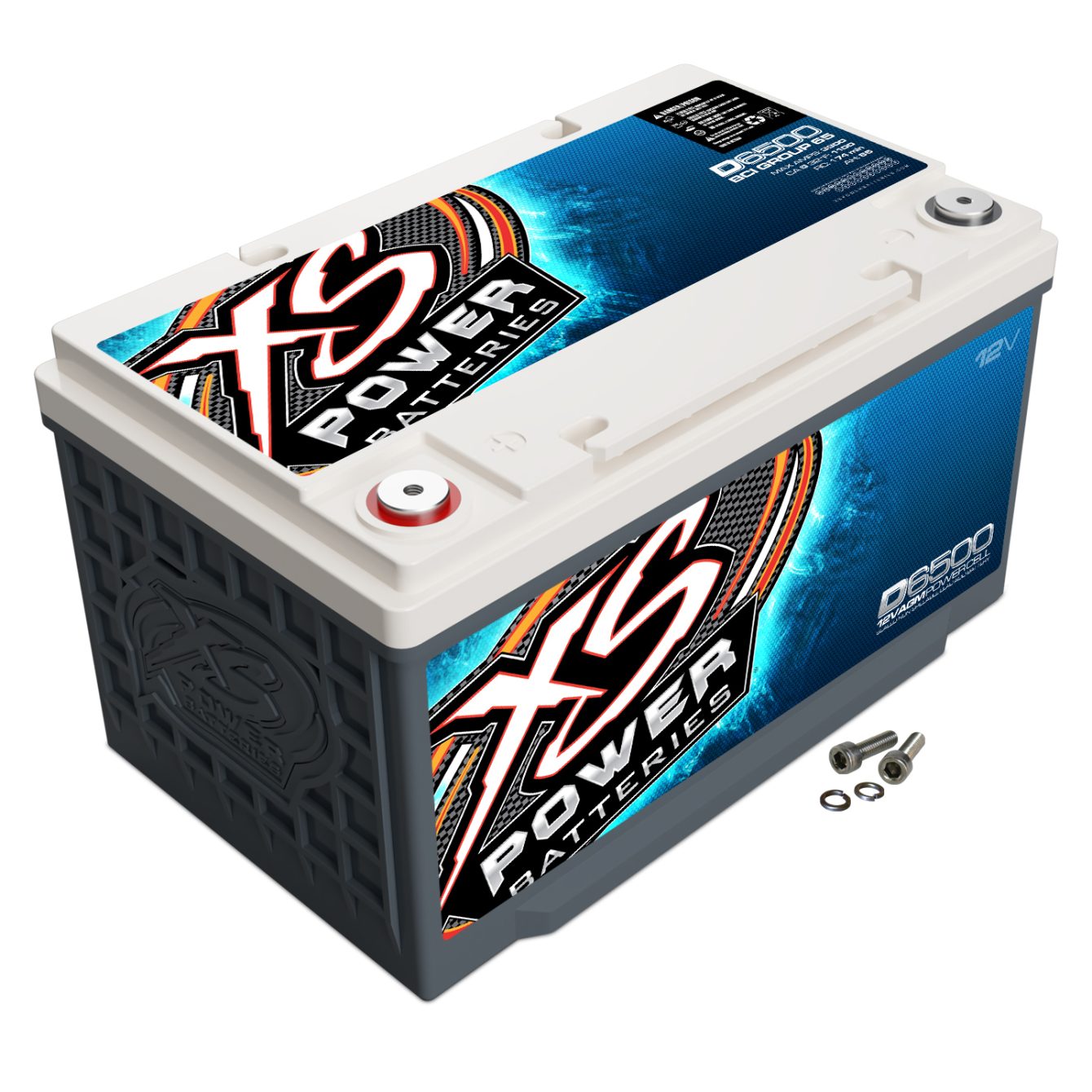

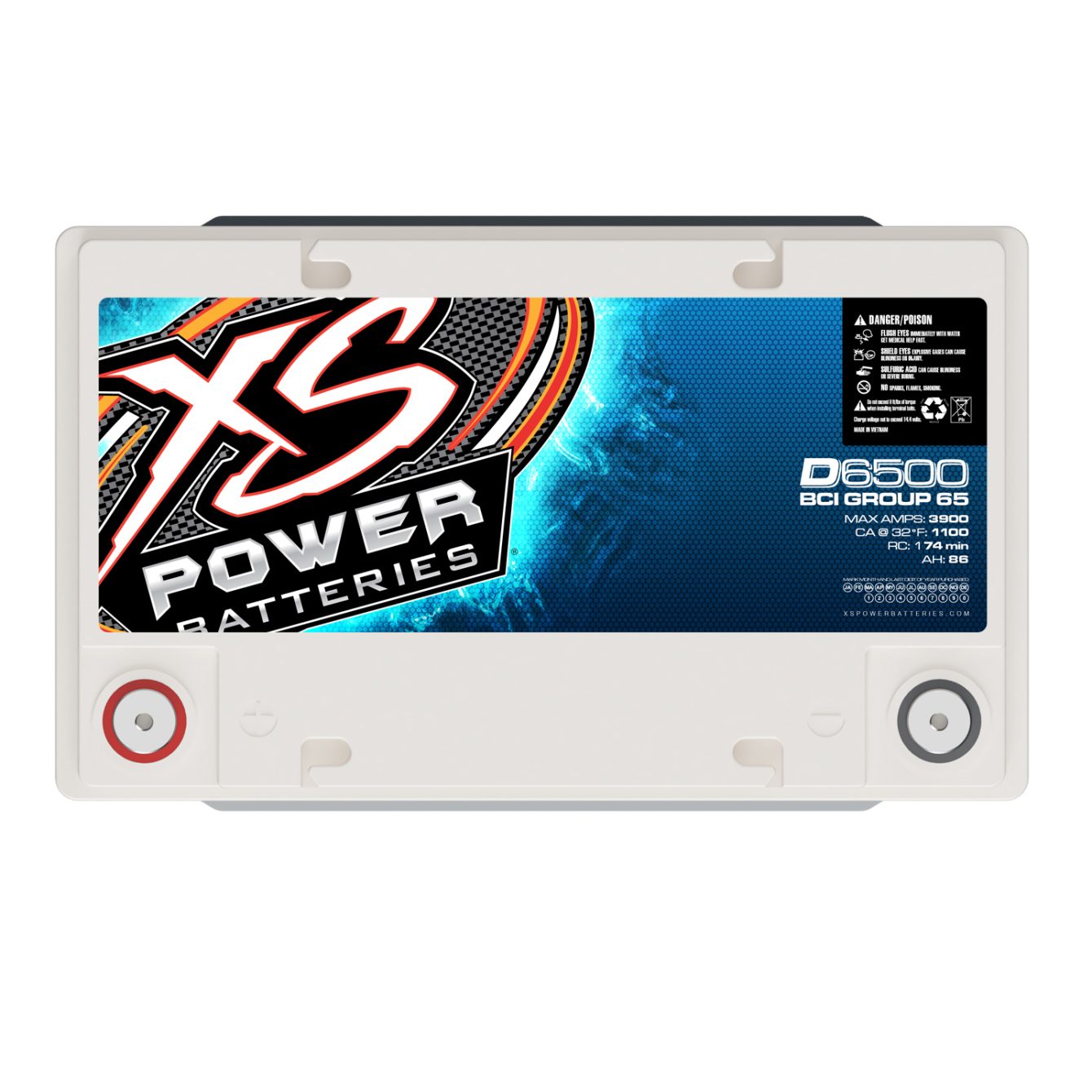

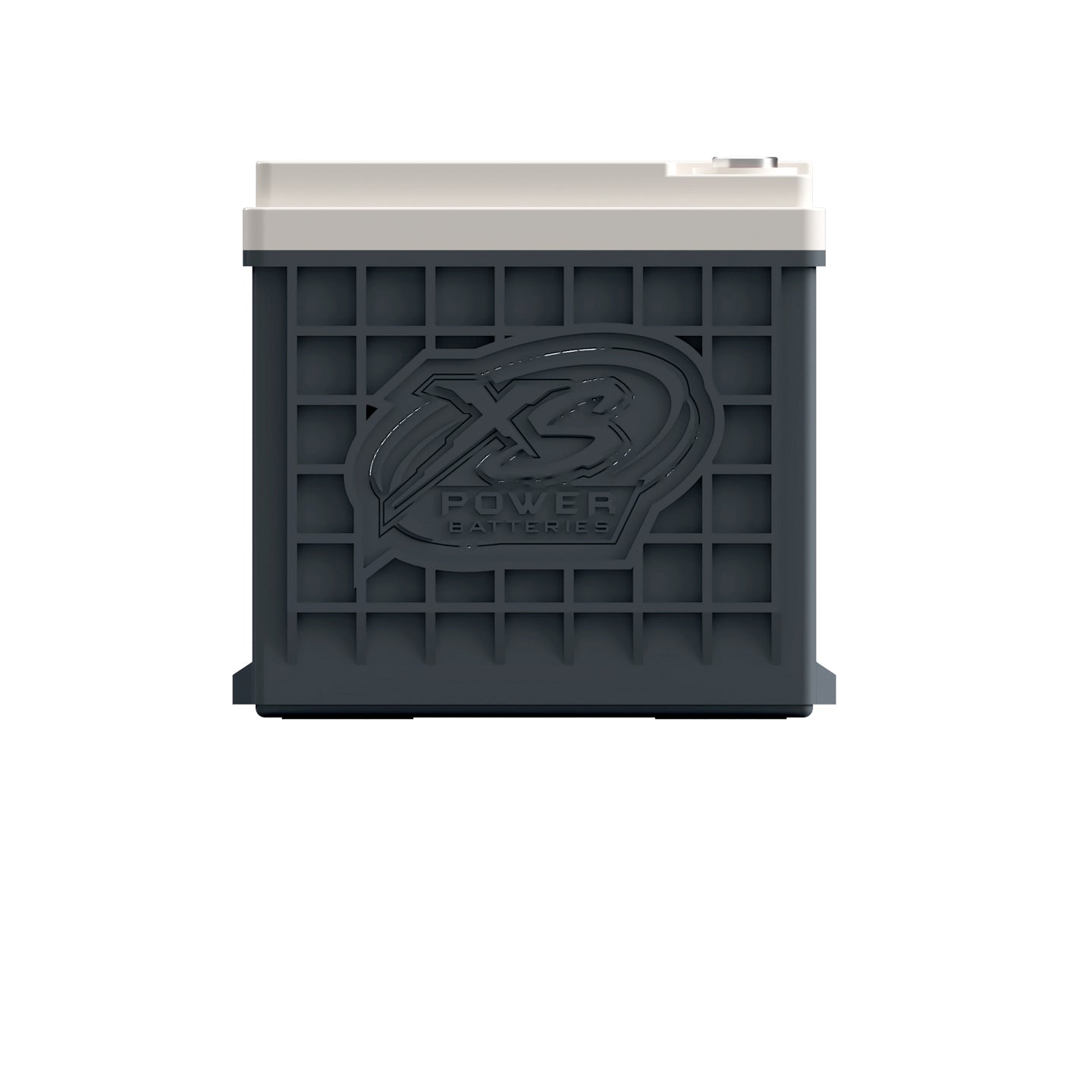

(1) XS POWER D6500 — GROUP 65 12V AGM BATTERY
- 12-Volt AGM Battery
- Group 65
- Max Amps: 3,800
- Cold Cranking Amps: 968
- Reserve Capacity: 174 minutes
- M6 Terminal Hardware Incl.
- 3 Year Warranty
- 53.81 lbs.
Extreme cranking power, enormous energy reserve and unparalleled durability make the XS Power D6500 the premier AGM battery for many Ford, Lincoln and Mercury models.
The D6500 is perfect for powering your car, and everything in it. Using Absorbent Glass Mat (AGM) technology, it easily delivers all the energy you need for aftermarket accessories like your audio system, or other electronics. Its sealed construction keeps it completely safe from spills and moisture on even the roughest ride.
The battery’s low internal resistance allows it to deliver an impressive 1,100 cranking amps, so your engine starts in extremely hot or cold weather. Use the D6500 as your main battery to power your vehicle. With plenty of juice in reserve, it can also power an audio system up to 3,000 watts. Using the D6500 as a secondary battery, you have a 4,000-watt capacity just waiting to be tapped.
12V BCI Group 65, AGM Battery
Weight Lbs. – 53.81
Weight Kgs. – 24.41
Length – 11.8 in
Height – 6.8 in
Width – 7.2 in
Max Amps – 3800A
CA – 1100
CCA – 968
Ah – 86
RC – 174
Primary Watts – 3000 Watts
Secondary Watts – 4000 Watts
M6 Terminal Hardware Included
DOWNLOAD D-SERIES INSTRUCTIONS

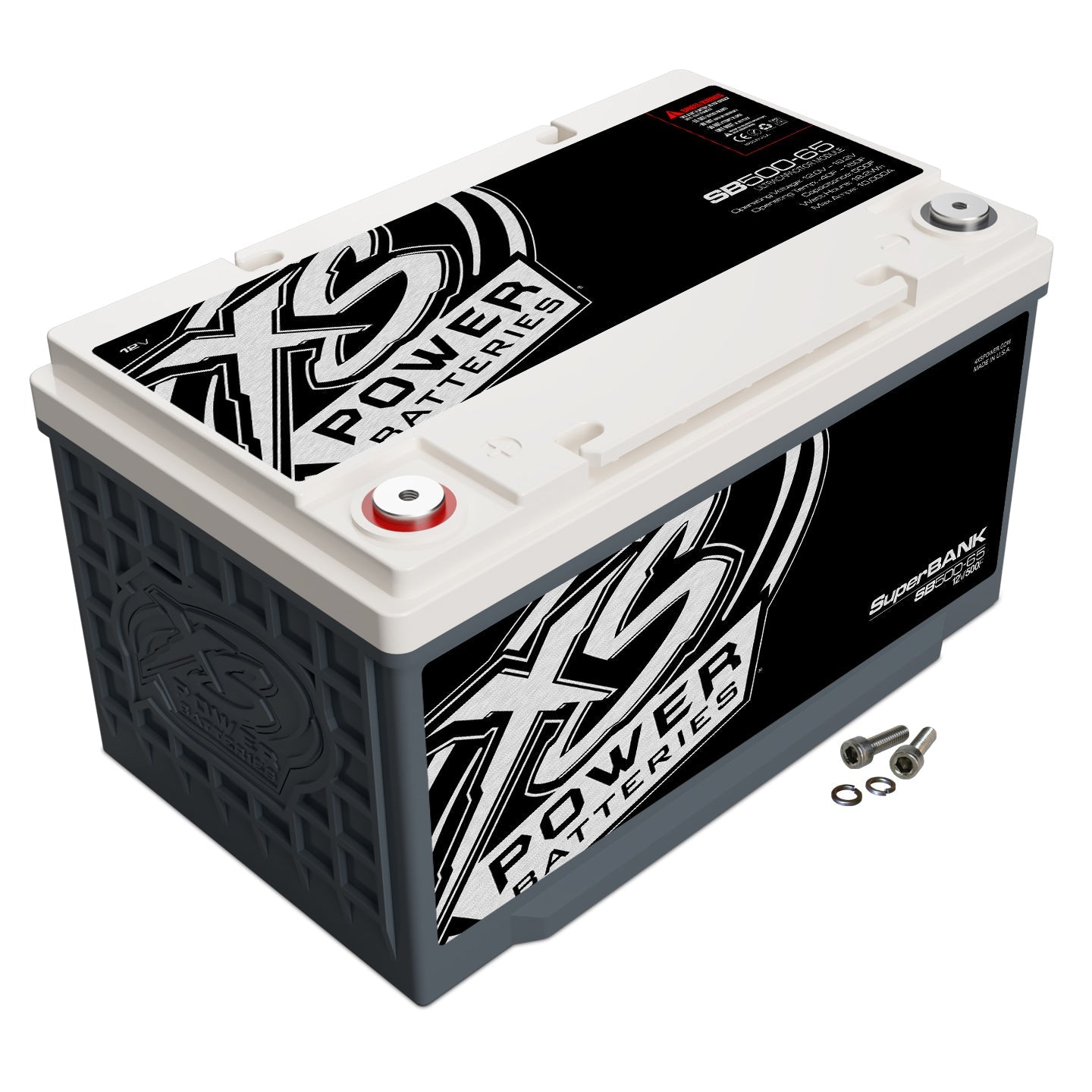

(1) XS POWER SB500-65 — GROUP 65 SUPERBANK ULTRACAPACITOR
- 12-Volt SuperBank Ultracapacitor
- Group 65
- Max Power: 4,000 Watts
- Voltage Range: 12.0 – 16.2
- 500 Farads
- 11 lbs.
- M6 Terminal Hardware Included
The XS Power SuperBANK is perfect for high-power car audio systems, engine starting systems, and more. Connect in parallel with any lithium or AGM battery to make a customized power pack, delivering the perfect amount of energy on demand so your amps, battery, or engine gets every bit of power they need—whenever they need it.
The SB500 delivers a surge of power to the factory 12-volt battery as it cranks, then rapidly recharges (usually in only a few seconds), ready to use again. The improved and stabilized voltage leads to longer-lasting factory batteries, starters, relays, and engine control modules, improving reliability and lowering the likelihood of costly repairs.
Ultracaps (aka Supercapacitors) also work extraordinarily well in extreme hot or cold. In winter, the Ultracap delivers a much-needed burst of energy to vehicles using a typically slow-cranking AGM battery. Rated to more than a million cycles, the Ultracap is designed to work well in commercial vehicles or “daily drivers”, normally lasting more than a decade.
12V BCI Group 65, Super Capacitor Bank, Max Power 4000 Watts, 500 Farad
Weight Lbs. – 11
Weight Kgs. – 4.98
Length – 11.8 in
Height – 6.8 in
Width – 7.2 in
Farads – 500
Max Power – 4000 Watts
Watt Hours – 18.2Wh
Operating Temperature – -40F-149F
M6 Terminal Hardware Included
DOWNLOAD SUPERBANK INSTRUCTIONS

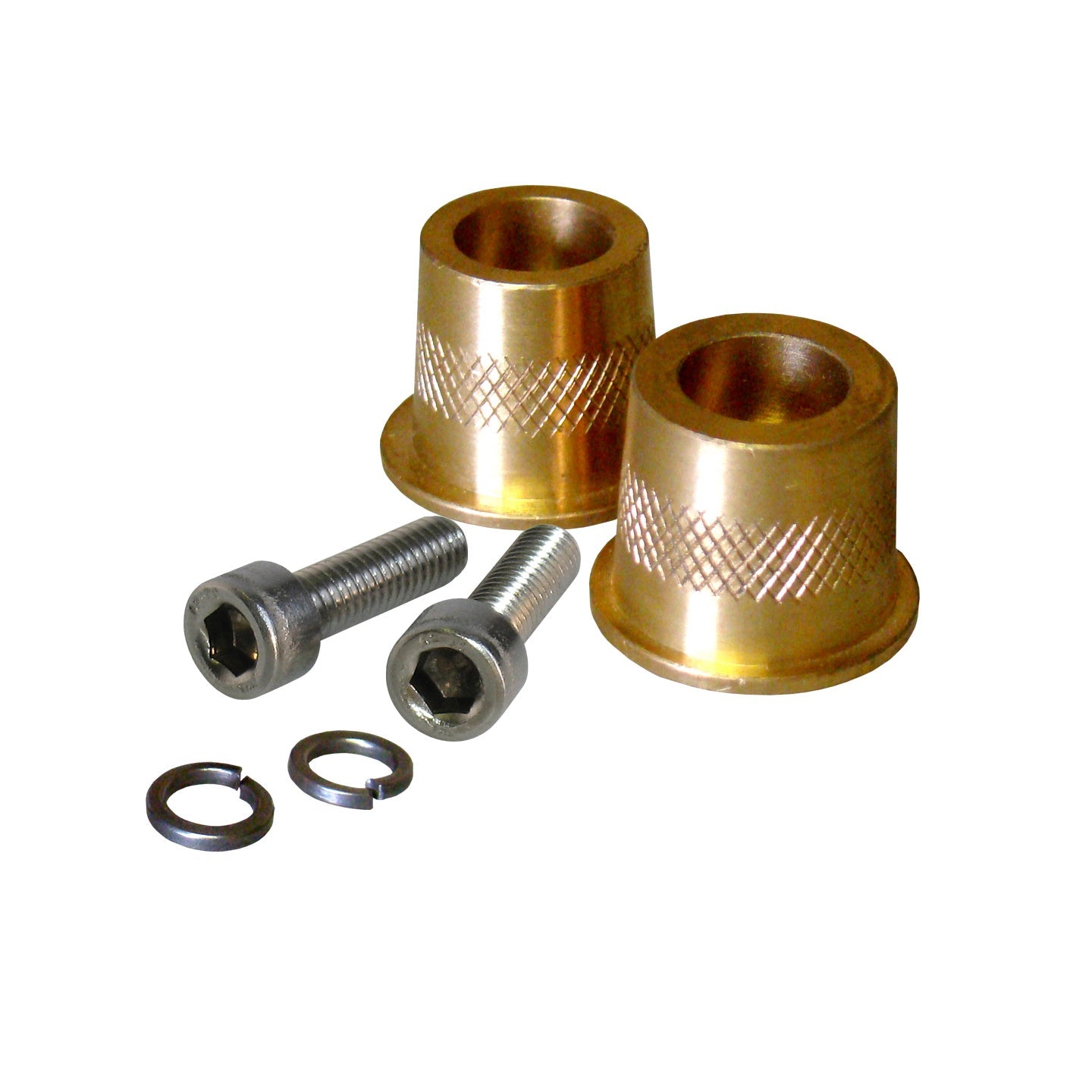

(2) XS POWER 580 — SHORT BRASS POST ADAPTORS
Short Brass Post Adaptors M6 — two sets included, one for the D6500 and one for the SB500-65.
580 to Ring Terminal Instructions
