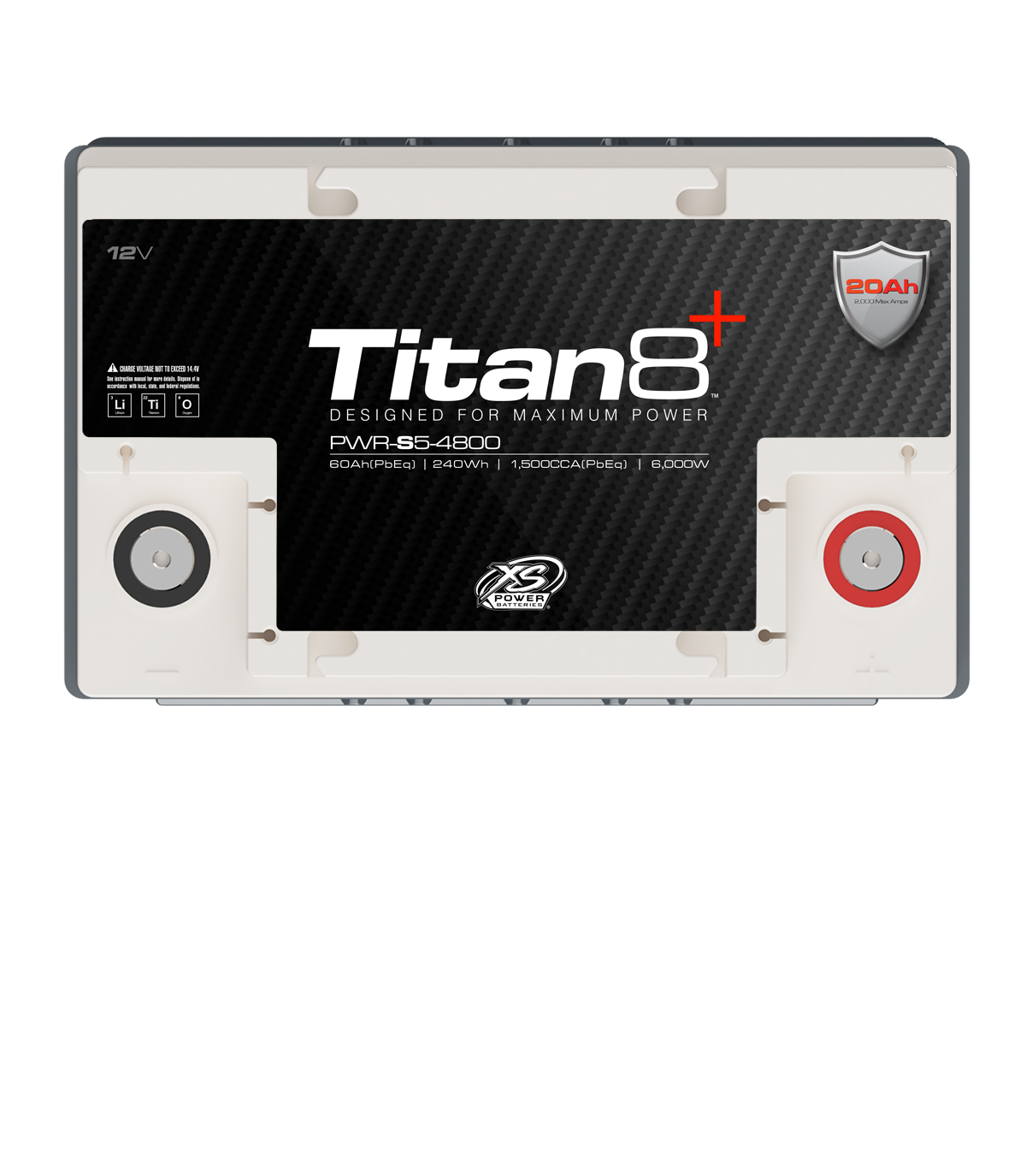

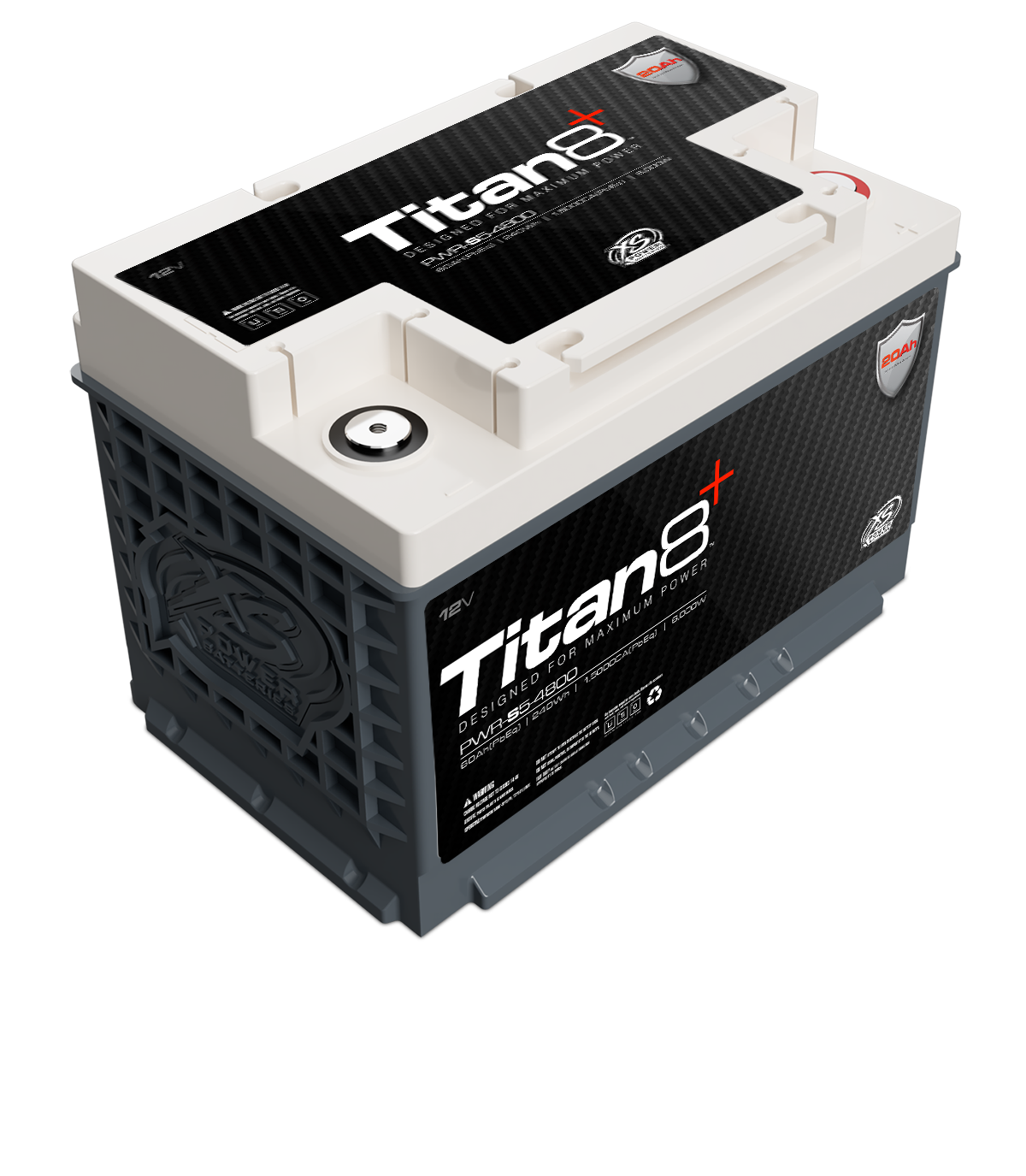

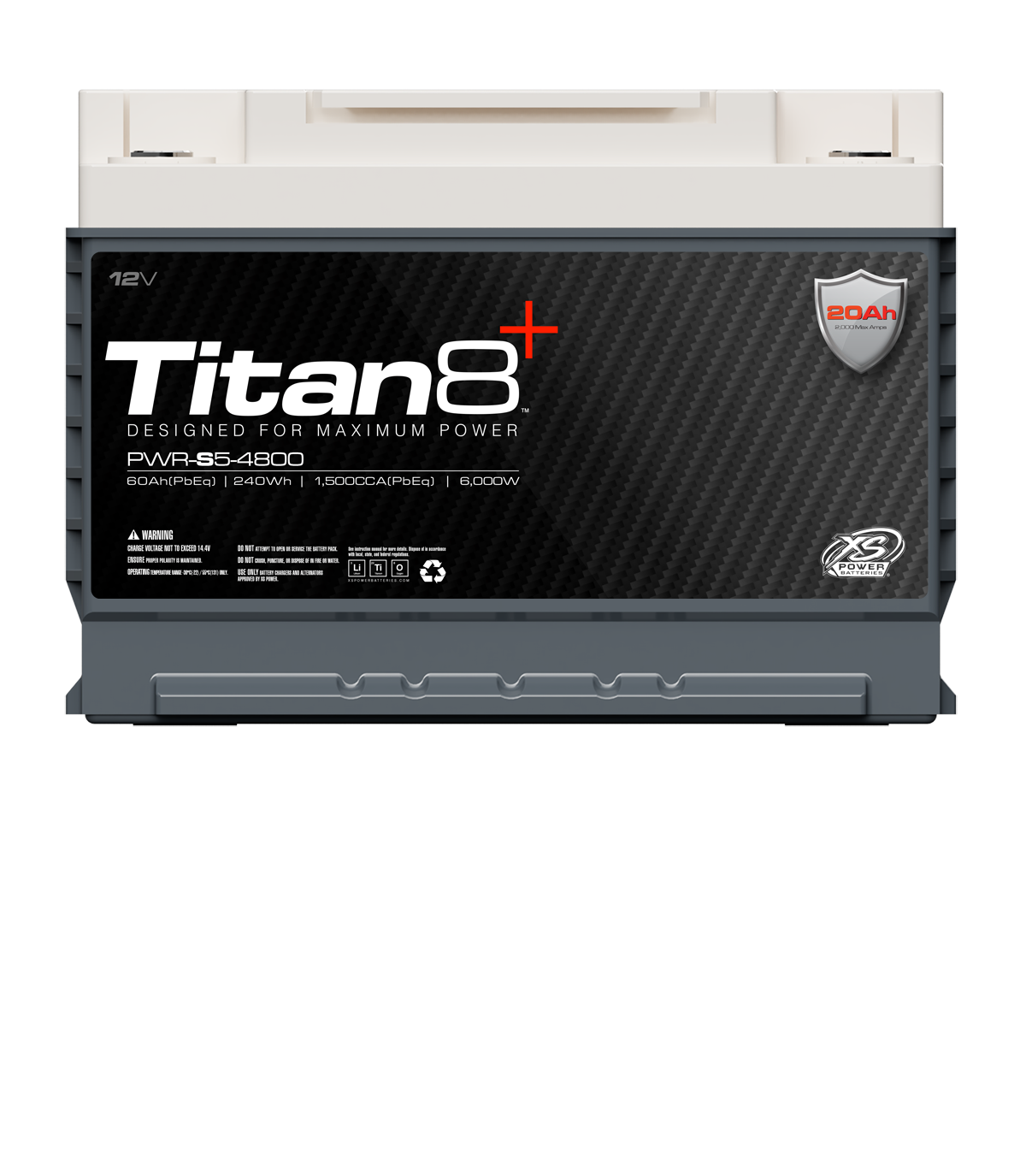

Our Titan8-Series products are the top of the line when it comes to power, performance, and reliability. Our Titan8-Series products use high-powered lithium titanate oxide cells, designed for high-burst output and fast recharge.
Great for stock or aftermarket alternators, mount our Titan8-Series in the cabin or under the hood of your Domestic or Japanese vehicle, including Dodge, Chevrolet, Ford, Ram, Chrysler, Mitsubishi, Honda, and more. Use the S5 as the main battery or as a secondary power source for accessories like LED lighting, electronics or your high-power stereo. Utilize our Find My Battery tab to check factory size fitment!
Weight Lbs. – 9.75 lbs
Length – 10.94 in
Height – 7.48 in
Width – 6.93 in
Voltage – 12V
Wattage – 5,000
MAX Amps – 2,000
Energy Wh – 120
CA – 1,000A
CA Pb Eq* – 1,500A
Ah – 20
Ah Pb Eq* – 60
M6 Terminals included
*CA Pb Eq is the equivalent cranking amp output when compared to AGM
*Ah Pb Eq is the equivalent amp-hour when compared directly to AGM

PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling.
For more information, visit www.P65Warnings.ca.gov
Specifications | |
---|---|
BCI Group Size Industry Standard Sizing
|
|
Volts Voltage Capability Of Battery
|
|
Max Amps The max pulse current this battery can deliver
|
|
CA Cranking Amps - The amount of current this battery can discharge and sustain for 30 seconds at 70 degrees Fahrenheit
|
|
CA Pb Eq Equivalent cranking amps when tested as an AGM
|
|
Ah Amp Hours - How many amps this battery can deliver over a 1-hour period
|
|
Ah Pb Eq Equivalent amp-hour when tested as an AGM
|
|
Energy Wh This is another method of calculating capacity.
|
|
Wattage Support As a secondary battery, this is the amount of wattage this battery can support for your high performance accessories.
|
|
Polarity Orientation of Posts On Battery
|
|
Included Hardware Included Hardware - Posts or Terminals Included If Applicable
|
|
Warranty |
|
Instructions |
|
Dimensions | |
Length (Inches) Length Of Battery In Inches
|
|
Width (Inches) Width of Battery In Inches
|
|
Height (Inches) Height of Battery In Inches
|
|
Weight (lbs) Weight of Battery in Pounds
|
|
Weight (kg) Weight of Battery in Kilograms
|
|
