DESCRIPTION

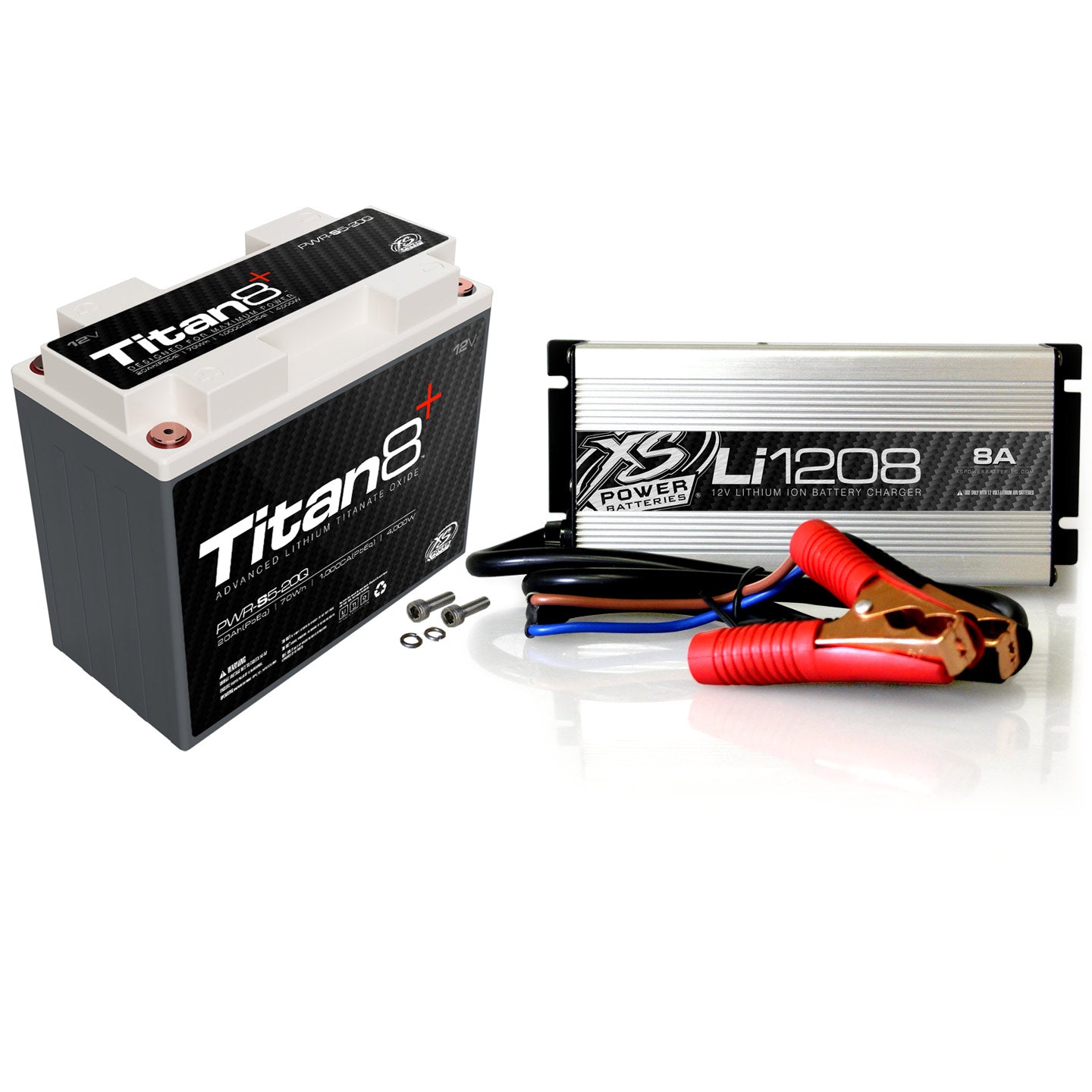

12V BCI Group 20/20L, Lithium Titanate Battery
Weight Lbs. – 4.50lbs
Length – 7.83 in
Height – 8.35 in
Width – 4.21 in
Voltage – 12V
Wattage – 4,000
MAX Amps – 1,335
Energy Wh – 70
CA – 670A
CA Pb Eq* – 1000A
Ah – 6
Ah Pb Eq* – 20

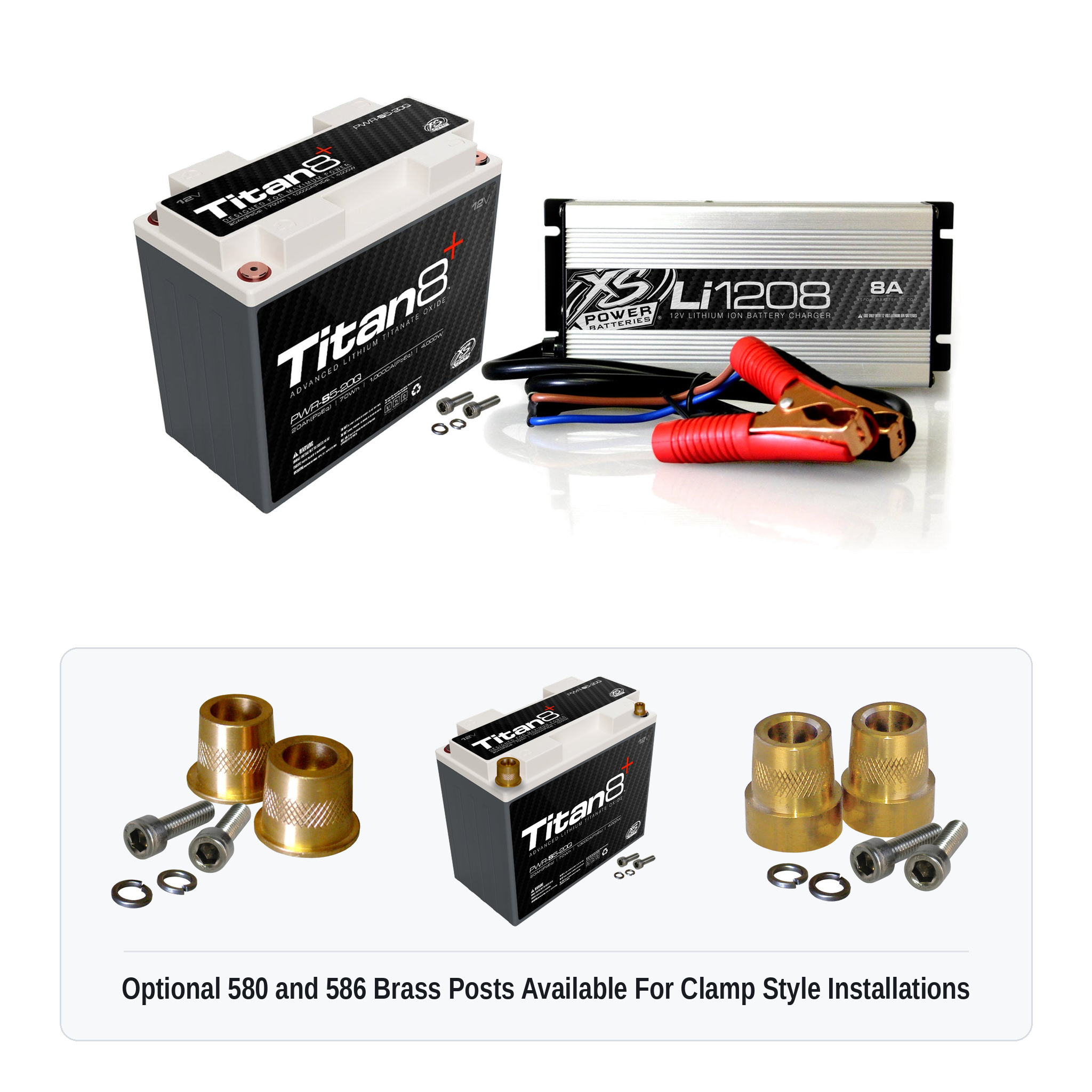

M6 Terminal Hardware Included
*CA Pb Eq is the equivalent cranking amp output when compared to AGM
*Ah Pb Eq is the equivalent amp-hour when compared directly to AGM
DESCRIPTION
High Frequency Lithium Battery IntelliCharger
Voltage – 12V
Amps – 8A
Input – 110V
Physical Specifications Dimensions (W x H x D) : 6.1” x 3.54” x 2” (155mm x 90mm x 50mm)
Weight: 2.2 lbs (1 kg)
AC Input Connections : 5.0’ (1.5 m) AWG 16
DC Output Connections : 3.9’ (1.19 m) AWG 10
AC Input Specifications
AC Input Voltage : 110-230 VAC, 47-63 Hz, 14.4V Cutoff
AC Input Current : 5A RMS fuse protected
