Products

12v AGM Batteries – Without Protective Case

d375
D680
D925

D375

Weight Lbs. – 12.24
Weight Kgs. – 5.55

Length – 7.87 in
Height – 5.28 in
Width – 3.03 in

MAX Amps – 800
Ah – 15

Suggested Accessories: 510 (side mnt box), 586 (“tall” SAE posts)

D680

Weight Lbs. – 15.42
Weight Kgs. – 7.00

Length – 7.28 in
Height – 6.67 in
Width – 3.19 in

MAX Amps – 1000
Ah – 20

Suggested Accessories: 511 (side mnt box), 515 (billet mnt), 586 (“tall” SAE posts)

D925

Weight Lbs. – 23.54
Weight Kgs. – 10.70

Length – 6.5 in
Height – 4.92 in
Width – 6.93 in

MAX Amps – 2000
Ah – 28

Suggested Accessories: i-BAR, 527 (GM mnt), 525 (billet mnt), 586 (“tall” SAE posts)

…………………………………………………………………………………………………………………………

d975
d1200

D975

Weight Lbs. – 26.43
Weight Kgs. – 12.00

Length – 7.83 in
Height – 6.67 in
Width – 5.30 in

MAX Amps – 2100
Ah – 35

Suggested Accessories: i-BAR, 535 (billet mnt), 580 (“short” SAE posts)

D1200

Weight Lbs. – 33.26
Weight Kgs. – 15.10

Length – 7.97 in
Height – 6.79 in
Width – 6.73 in

MAX Amps – 2600
Ah – 44

Suggested Accessories: i-BAR, 545 (billet mnt), 586 (“tall” SAE posts)

…………………………………………………………………………………………………………………………

12v AGM Batteries – Reinforced Plastic Case

d5100
d5100r
d3400

D5100

Weight Lbs. – 39.60
Weight Kgs. – 18.00

Length – 9.02 in
Height – 8.19 in
Width – 5.43 in

MAX Amps – 3100
Ah – 60

Suggested Accessories: i-BAR, 548 (billet mnt)

NOTE: 5100 is standard polarity; 5100R is reverse polarity

D5100R

Weight Lbs. – 39.60
Weight Kgs. – 18.0

Length – 9.02 in
Height – 8.19 in
Width – 5.43 in

MAX Amps – 3100
Ah – 60

Suggested Accessories: i-BAR, 548 (billet mnt)

NOTE: 5100 is standard polarity; 5100R is reverse polarity

D3400

Weight Lbs. – 46.00
Weight Kgs. – 20.85

Length – 10.24 in
Height – 7.20 in
Width – 6.65 in

MAX Amps – 3300
Ah – 67

Suggested Accessories: i-BAR (see back page), 570 (billet tray), 572 (billet cvr)

…………………………………………………………………………………………………………………………

d2400
d6500
d2700

D2400

Weight Lbs. – 60.06
Weight Kgs. – 27.30

Length – 10.24 in
Height – 8.31 in
Width – 6.65 in

MAX Amps – 3500
Ah – 70

D6500

Weight Lbs. – 58.00
Weight Kgs. – 25.30

Length – 11.8 in
Height – 6.80 in
Width – 7.20 in

MAX Amps – 3900
Ah – 75

D2700

Weight Lbs. – 67.32
Weight Kgs. – 30.60

Length – 12.09 in
Height – 8.31 in
Width – 6.65 in

MAX Amps – 4300
Ah – 100

…………………………………………………………………………………………………………………………

d3100

D3100

Weight Lbs. – 77.00
Weight Kgs. – 35.00

Length – 13.03 in
Height – 8.43 in
Width – 6.89 in

MAX Amps – 5000
Ah – 110

Suggested Accessories: i-BAR, 580 (“short” SAE posts)

…………………………………………………………………………………………………………………………

12v AGM Batteries – Steel Protective Case

S375
s680
s925

S375

Weight Lbs. – 14.00
Weight Kgs. – 6.35

Length – 8.05 in
Height – 5.33 in
Width – 3.25 in

MAX Amps – 800
RC – 25min.
CA – 190A

Suggested Accessories: 510 (side mnt box), 586 (“tall” SAE posts)

S680

Weight Lbs. – 17.42
Weight Kgs. – 7.90

Length – 7.28 in
Height – 6.63 in
Width – 3.19 in

MAX Amps – 1000
RC – 28min.
CA – 320A

Great for Comp. Eliminator and Bracket!

S925

Weight Lbs. – 25.57
Weight Kgs. – 11.60

Length – 6.65 in
Height – 4.98 in
Width – 7.04 in

MAX Amps – 2000
RC – 55min.
CA – 550A

Great for Stock, Super Stock, Comp. Eliminator, Bracket, Outlaw 8.5 and Outlaw Grudge!

…………………………………………………………………………………………………………………………

s975
s1200
s3400

S975

Weight Lbs. – 29.07
Weight Kgs. – 13.20

Length – 7.83 in
Height – 6.63 in
Width – 5.24 in

MAX Amps – 2100
RC – 50min.
CA – 525A

Great for Stock, Super Stock, Comp. Eliminator, Bracket, Outlaw 8.5 and Outlaw Grudge!

S1200

Weight Lbs. – 35.94
Weight Kgs. – 16.30

Length – 7.97 in
Height – 6.75 in
Width – 6.69 in

MAX Amps – 2600
RC – 80A
CA – 725min.

Great for Stock, Super Stock, Comp. Eliminator, Bracket, Outlaw 8.5 and Outlaw Grudge!

S3400

Weight Lbs. – 49.49
Weight Kgs. – 22.45

Length – 10.28 in
Height – 7.24 in
Width – 6.75 in

MAX Amps – 3300
RC – 135min.
CA – 1000A

Great for Outlaw 8.5 and Outlaw Grudge!

…………………………………………………………………………………………………………………………

12V AGM Combo Kits – Automotive terminals included

D375-510
S375-510
S680_512

D375-510

D375 and 510 Stamped Hold Down Combo

S375-510

S375 battery and 510 Stamped Hold Down Combo

D680-511

D680 battery and 511 Stamped Hold Down Combo

…………………………………………………………………………………………………………………………

S680-512
S925-527

S680-512

S680 battery and 5112 Stamped Hold Down Combo

D925-527**S

S925 battery and 527 Stamped Hold Down Combo

…………………………………………………………………………………………………………………………

14V AGM Batteries – With Reinforced Case

s1400
d1400

S1400

Weight Lbs. – 28.27
Weight Kgs. – 12.82

Length – 10.28 in
Height – 7.24 in
Width – 6.75 in

MAX Amps – 2000
RC – 50min.
CA – 500A

D1400

Weight Lbs. – 43.56
Weight Kgs. – 19.75

Length – 10.24 in
Height – 7.20 in
Width – 6.65 in

MAX Amps – 2400
Ah – 50

…………………………………………………………………………………………………………………………

16V AGM Batteries – With Reinforced Case

s1600
d1600

S1600

Weight Lbs. – 30.80
Weight Kgs. – 13.97

Length – 10.28 in
Height – 7.24 in
Width – 6.75 in

MAX Amps – 2000
RC – 50min.
CA – 500A

D1600

Weight Lbs. – 48.18
Weight Kgs. – 21.85

Length – 10.24 in
Height – 7.20 in
Width – 6.65 in

MAX Amps – 2400
Ah – 50

…………………………………………………………………………………………………………………………

Lithium Batteries

lr48
Lr48CK

Lr48

Voltage - Adjustable
Weight – 7lbs 5oz

Length – 4.27 in
Height – 7.08 in
Width – 5.0 in

Regulated Output LiFePo4 Lithium Powerpack

Download Lr48 Instruction Sheet

Lr48CK

Regulated Lr48 Lithium Powerpack and 1007 Charger Combo Kit

Download Lr48 Instruction Sheet

Download 1007 Charger Instruction Sheet

…………………………………………………………………………………………………………………………

Electronics – Chargers

993stepdown
1004_16v_charger
105_12v-16v_charger

993

Voltage Step
Down Module
50A Max

1004
16V Battery IntelliCharger
20A Max

16V AGM compatible with 20A Max output. Two charging modes and LED indicators with ammeter to monitor status.
6′ heavy duty cables with clamps. Built-in cooling fan for reliability. Compact size, only 16 lbs. Constant current/Constant voltage.

1005
12v/16v Battery IntelliCharger
5A, 15A, 25A

12V and 16V AGM compatible with 25A Max output. Three charging modes and LED indicators with ammeter to
monitor status.
6′ heavy duty cables with clamps. Built-in cooling fan for reliability. Compact size, only 24 lbs. Constant current/Constant voltage.

…………………………………………………………………………………………………………………………

1007_lith_charger

1007
Regulated Output LiFePo4 Lithium Powerpack

Suggested Accessories: 511 (side mnt box), 515 (billet mnt), 586 (“tall” SAE posts)

Download 1007 Charger Instruction Sheet

…………………………………………………………………………………………………………………………

Voltage Control Module

vcm_controller
vcm_harness
vcm_kit

VCM Digital Dash Mount Controller

VCM Harnesses

VCM Controller and Harness Combo Kit

…………………………………………………………………………………………………………………………

Installation Accessories – Hold Downs

512_holddown
511_holddown
512_holddown

510
375 Stamped Aluminum Side Mount Box with no window

511
680 Stamped Aluminum Side Mount box with window

512
680 Stamped Aluminum Side Mount box with no window

…………………………………………………………………………………………………………………………

515_holddown
525_holddown
527_holddown

515
680 Billet Aluminum Hold Down

525
925 Billet Aluminum Hold Down

527
S925 GM Direct Mount and Universal Mounting Kit

…………………………………………………………………………………………………………………………

535_holddown
545_holddown
548_holddown

535
975 Billet Aluminum Hold Down

545
1200 Billet Aluminum Hold Down

548
D5100/D5100R Billet Aluminum Hold Down

…………………………………………………………………………………………………………………………

570_holddown
572
535_holddown

570
3400 Billet  Aluminum Hold Down Base

572
3400 Billet Aluminum Cover Plate

577
D2400 Billet Aluminum Hold Down

…………………………………………………………………………………………………………………………

Installation Accessories – Terminals

551
553
554

551
i-Bar Side and Top Terminal Adapter

pic being taken

553
i-Bar Marine Side and Top Terminal Adapter with 5/16″ and 3/8″ Studs

554
i-Bar marine Terminal Adapter with 5/16″ and 3/8″ Studs – Top Only

…………………………………………………………………………………………………………………………

555
556
557

555
i-Bar Multi Top Post and Side Terminal Adapter

556
i-Bar Multi Top Post Terminal Adapter – Top Only

557
i-Bar 925 Adapter – Allows fitment of i-Bar Accessories

…………………………………………………………………………………………………………………………

558
575_adapters_bolts
580

558
i-Bar 1200 Adapter – Allows fitment of i-Bar Accessories

575
S1000/D1000 Brass Post Adapters and Bolts M10 Threads

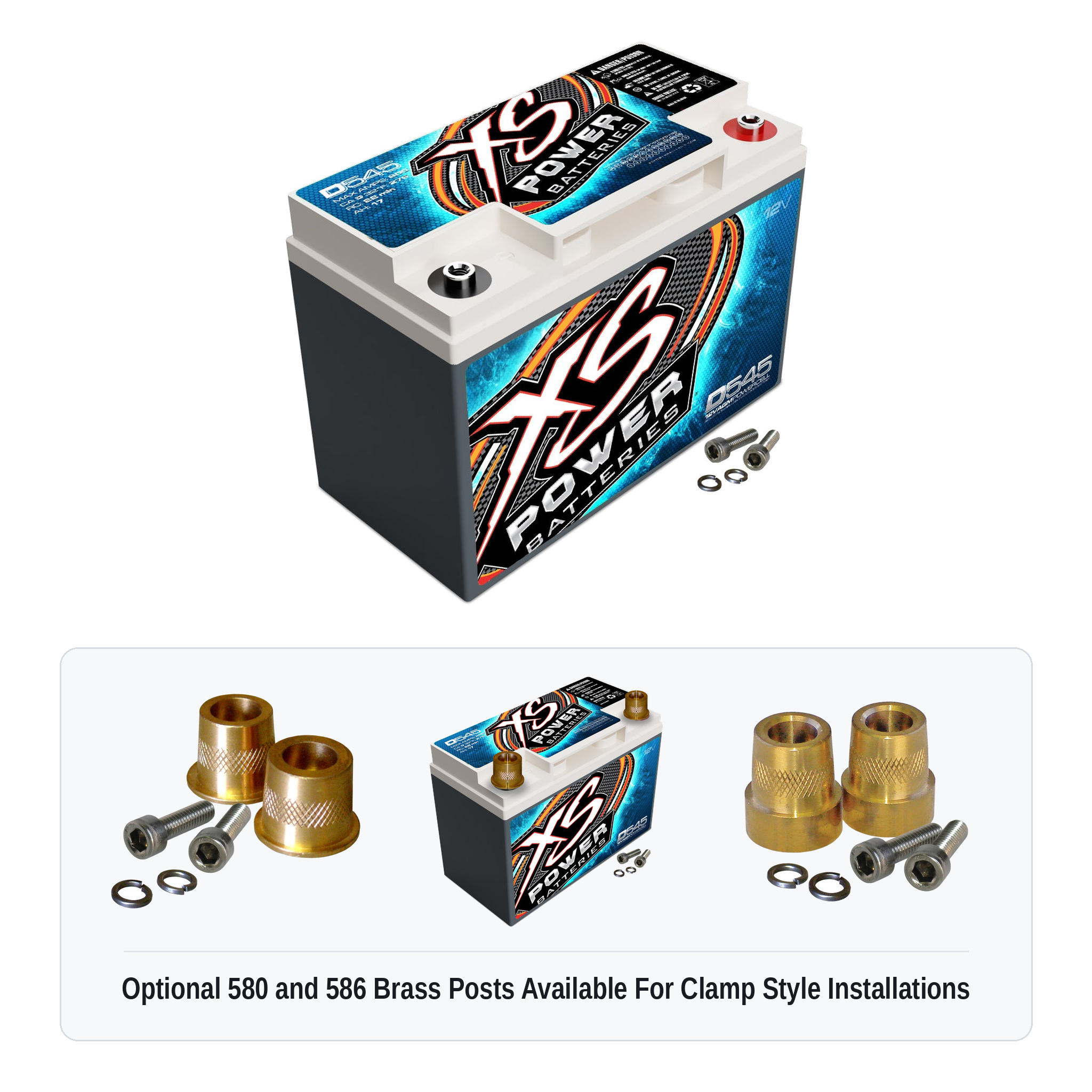

580
Short brass Post Adapters M6

…………………………………………………………………………………………………………………………

586
588
589

586
Tail brass Post Adapters M6
For 925, 1200

588
5/16″ (2) and 3/8″ (2) Stud Adapter Kit

589
5/16″ (2) Stud Adapters

…………………………………………………………………………………………………………………………

590

590
3/8″ (2) Stud Adapters

…………………………………………………………………………………………………………………………
